Traffic simulation of Beijing West railway station North area

Traffic simulation of Beijing West railway station North area

Xiaochun Lu, Zhanping Liu

Beijing Jiaotong University (China)



Received: October 2012

Accepted: March 2013



Lu, X., Liu, Z. (2013). Traffic simulation of Beijing West railway station North area. Journal of Industrial Engineering and Management, 6(1), 336-345. http://dx.doi.org/10.3926/jiem.678

---------------------

Abstract:

Purpose: In recent years the problem of traffic congestion and its management has become increasingly prominent. It is a hot research about how to make full use of computer simulation technology to make transportation more rational and more organized. In this paper, we focus on traffic of Beijing West Railway Station north area, and try to find a way to reduce traffic congestion in this area.

Approach: In this paper, we studied the traffic flow by survey. We also built a traffic simulation model with VISSIM software. Different types of vehicles and their speed are set in model according survey data. The simulation model provides different traffic scenarios of Beijing West Railway Station north area.

Findings: We found the traffic of this area up is to 1800 vehicles/hour. Heavy traffic burden causes traffic congestion in two positions: the bus hub and car drop-off point. If we can extend bus interval departure time and park cars to south square of Beijing West Railway Station, the traffic condition will be improved.

Originality: This paper gives a solution to reduce traffic congestion in Beijing West Railway Station north area. The bus hub and car parking lots are the key point of traffic problem in this area.

Keywords: traffic simulation, Beijing West Railway Station, VISSIM

---------------------

1. Introduction


Traffic simulation models can represent real-world conditions such as delays, travel times, queues, and flows. This technology is becoming an increasingly important tool for transport system analysis and management. The applications of VISSIM simulation are increasingly developed today as potential solutions to traffic problems.

VISSIM is commonly used software in practice for diverse problems related to road traffic control. It is based on psycho-physical driving algorithms and can reflect the reality of the problem more accurately. Cunto assumed that individual driver safety performance provides a fundamental indication for crash risk and suggested a systematic and objective procedure for specifying model inputs based on driver safety performance measures for rear-end crashes at signalized intersections with VISSIM (Cunto & Saccomanno, 2008). Bains evaluated capacity of expressways and studied the effect of vehicle composition on Passenger Car Unit (PCU) values by modeling traffic flow on Indian expressways (Bains, Ponnu & Arkatkar, 2012). Ahmed evaluated indirect right turn treatment to reduce conflicts and congestion at signalized intersections in urban areas and VISSIM was used to evaluate before and after scenarios (Ahmed, 2011). Qiu evaluated the road congestion condition by VISSIM and put forward some measures to improve urban road congestion condition (Qiu & Zheng, 2011). Du used VISSIM to simulate the traffic phenomenon, and in-depth analysis of traffic flow characteristics, taking Jintong West Rd-Jinghua North Street Crossroads as an example. Through the simulation of observation, this paper got the simulation output parameters and basic characteristics of the intersection, and in-depth researched the critical causes of congestion, and put forward the corresponding improving countermeasures (Du & Liu, 2012).

Previous simulation studies have examined different lane-restriction strategies for heavy vehicles, but, the general lane-changing model ignore the fundamental differences in the lane-changing behavior of passenger cars and heavy vehicles which can increase the accuracy of simulation models. However, an exclusive lane-changing model for heavy vehicles can increase the accuracy of simulation models, verified by Moridpour (Moridpour & Mazloumi, 2011).

As technology advances, the combination of VISSIM and algorithm has been widely studied for solving practical problems. Liu proposed a procedure, based on a genetic algorithm, to model U-turn movements at unsignalized intersections with nontraversable median cross sections in the traffic simulation program VISSIM. The simulation results were estimated using gap acceptance models, which showed VISSIM provides reasonable capacity estimates for U-turns at unsignalized intersections (Liu & Qu, 2012). Stevanovic presented a GA program which is described as VISSIM-based Genetic Algorithm Optimization of Signal Timings (VISGAOST) and he optimized traffic signal timings for both transit and private modes. The evaluation of VISGAOST showed VISGAOST can be used as a practical tool for the optimizations of signal timings, performed on two test-case networks (Stevanovic & Stevanovic, 2008). Existing studies for Variable Speed Limit (VSL) algorithms have considered only one station to control the traffic. Jo proposed an optimization model of VSL for multiple stations, performed by VISSIM. The results show that the proposed algorithm improves safety on roads with minimum additional travel time (Jo & Kim, 2012). Besides, Tamas proposed MATLAB may be involved in the traffic simulation to create an integrated environment with VISSIM. Thus, complex mathematical problems can be calculated online by MATLAB and used for VISSIM simulation (Tettamanti & Varga, 2012).

Based on the survey of the traffic flow around Beijing West Railway Station north area, we programed traffic simulation to find out the causes of traffic congestion and provide some optimization proposals with VISSIM.

1) Yangfangdian West Rd. 2) Yangfangdian Rd. 3) Lianhuachi East Rd.

4) Parking lots 5) Bus hub 6) Beijing West Railway Station

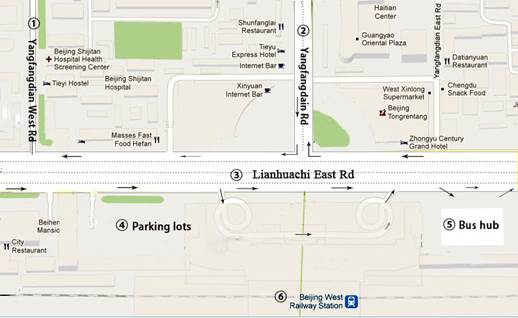

Figure 1. Beijing West Railway Station north area map



This paper is structured as follows: The next section provides the analysis of traffic situation and underlying data around Beijing West Railway Station north area. The following section is about establishing the simulation model. The last section analysis simulation results, summarizes the findings and conclusions.


2. Traffic situation and underlying data analysis


Beijing West Railway Station and surrounding transportation system is shown as Fig. 1. There are 3 main roads in this area: Yangfangdian East Road, Yangfangdian Road and Lianhuachi East Road. In addition, a bus hub is on the east of railway station. A large number of buses, cars and taxis are driving in front of Beijing West Railway station.

2.1. Traffic situation


The survey data of traffic flow are shown in Table 1. From table 1, we can see that vehicles mainly are cars. They are over 83%. Buses are about 15%~4%.


Location

Vehicle Type

Quantity (in vehicles)

Proportion (%)

Time 9:30-11:30

Time 16:30-17:30

Lianhuachi East Rd from east to west

car

3010

1532

83.8

bus

564

269

15.369

van

35

10

0.83

total

3609

1811

100

Lianhuachi East Rd from west to east

car

3617

1755

83.8

bus

665

322

15.369

van

36

17

0.83

total

4316

2094

100

Yangfangdian Rd

car

800

401

86.903

bus

84

43

9.19

van

31

23

3.907

total

915

467

100

Yangfangdian West Rd

car

574

328

94.947

bus

30

8

4

van

9

1

1.053

total

613

337

100

Table 1. The Survey Data of Traffic Flow in Beijing West Railway Station north area



2.2. Bus and taxi dwelling time


In Beijing West Railway Station area, only can taxi and bus provide public transportation service. We found that when a taxi drops off passengers and a bus drives away from bus hub will cause traffic jam. In order to build simulation model, we must give out random distribution of bus departure time and taxi dwelling time as well.

In bus hub, a bus should depart according schedule. However, we found that a bus departure time depends on arriving and waiting passengers.  A bus interval departure time varies from 8 minutes to 10 minutes, obeying uniform distribution. Besides, a bus dwelling time (waiting for passengers boarding) is subject to triangle distribution (1, 5, 6) minutes.

A lot of taxies often drop off passengers by waiting hall. Its dwelling time has more obvious characteristics: during the traffic peak period, average dwelling time is about 30 seconds, however in the non-peak traffic, the dwelling time is irregular. In this paper we use 30 seconds as its dwelling time.


2.3. Distribution of traffic arrival rate


Around the Beijing West Railway Station north area, traffic flow concerns about Lianhuachi East Rd, Yangfangdian Rd, Yangfangdian East Rd, Yangfangdian West Rd and the bus hub. In VISSIM software, we can set traffic flow as different time intervals, and then program will generate vehicles according proportion we have given out. We counted vehicles every 5 minutes in Beijing West Railway Station and got survey results shown as in Table 2.


Location

Traffic Arrival Rate (Vehicles/ hour)

Time 9:30-11:30

Time 16:30-17:30

Lianhuachi East Rd from east to west

1804

1811

Lianhuachi East Rd from west to east

2158

2094

Yangfangdian Rd

458

467

Yangfangdian West Rd

307

337

Table 2. Traffic Arrival Rate



In VISSIM, buses running lane needs to be set separately on account of buses must stop at bus station. In case of no traffic jams, a bus almost runs in accordance with its schedule strictly.

2.4. Path decision data


Path and Path Decision

Vehicle Type

Quantity  (in vehicles)

From Lianhuachi East Rd to Yangfangdian Rd

Go straight on Lianhuachi East Rd

cars

4042

buses

743

vans

39

Turn right to the Yangfangdian Rd

cars

800

buses

84

vans

31

from Lianhuachi East Rd to XiMuLou Community

Go straight on Lianhuachi East Rd

all

100

Turn right to XiMuLou Community

1

From Lianhuachi East Rd to Yangfangdian West Rd

Go straight on Lianhuachi East Rd

cars

3990

buses

733

vans

38

Turn right to the Yangfangdian West Rd

cars

574

buses

30

vans

7

From Lianhuachi East Rd to the parking lot

Go straight along Lianhuachi East Rd

cars

6410

Turn right to the parking lot

817

From Lianhuachi East Rd to the waiting hall

Go straight along Lianhuachi East Rd

cars

5371

buses

980

vans

53

Turn right to the underground parking

cars

527

buses

0

vans

0

Turn right to the waiting hall

cars

2237

buses

0

vans

0

Table 3. Path Decision Data




Traffic flow in Lianhuachi East Rd may turn right or make a U-turn, so vehicles will make path decisions. In VISSIM software, driving path decisions are made according to different mode in a different ratio. For example, a part of cars from Lianhuachi East Rd maybe turn to right to Yangfangdian Rd, other cars maybe go ahead. In simulation program, we must set vehicles’ path decision. The path decision in this paper is shown in Table 3.


3. Simulation modeling


3.1. Modeling road network


In order to build a precise road network model complying with the actual in VISSIM, we import Beijing West Railway Station map from Google earth as background picture. After that, we build road network in proportion. Besides, as mentioned previously, bus lane has been created separately and bus stop has been set up in the corresponding.

3.2. Modeling traffic flow


                 Time(sec)

Road

0-3600(s)

3600-7200(s)

7200-10800(s)

Lianhuachi East Rd from east to west(north traffic flow)

1804

1804

1811

Yangfangdian Rd

458

458

467

Yangfangdian West Rd

306.5

306.5

337

Lianhuachi East Rd from west to east(south traffic flow)

2158

2158

2094

Table 4. The Traffic Flow in Different Periods




In VISSIM, the traffic flow model consists of two parameters: the traffic flow in different routes and the traffic flow in different periods in the same route. The traffic flow in different periods is given out in Table 4. From Table 4, we can find that the south traffic flow is larger than the north. The traffic burden of Lianhuachi East Road from west to east is higher than this road from east to west.


3.3. Vehicle priority rules


At the intersection of no signal control, VISSIM uses priority rules specify the road right in vehicles conflicting scenarios. In our model, the rule is that cars going ahead are prior to the rest on the main road, and cars going straightly are ahead of turning ones.


4. Simulation results analysis


We evaluate the traffic system from two aspects: indicators that reflect fluency such as vehicle average queue length, maximum queue length, the total number of vehicles in queue; indicators that reflect efficiency such as average delay time, average stopping time, average travel time, times of stops.

According to the simulation results, except the two intersections mentioned below, the traffic congestion around Beijing West Railway Station north area is not so serious.


Interval Time(sec)

Travel Time (sec)

Average Delay Time(sec)

Block Time(sec)

900

53.3

10.8

1.1

1800

51.3

8.7

0.6

2700

55.6

12.5

1.8

3600

57.8

15

2.7

4500

52.1

9.4

0.9

5400

67.8

25.4

4.2

6300

70.2

27.4

7.5

7200

56.3

13.8

1.7

8100

52.9

9.7

1.3

9000

71.7

29.2

9.6

9900

78.6

35.9

9

10800

49.6

6.8

0.4

Table 5. Itinerary and Delay Time Statistics at the 1st Congestion Position




Interval Time (sec)

Queue Avg. Len. (meters)

Queue Max. Len.(meters)

Delay Time(sec)

900

26

149

292

1800

22

119

286

2700

34

179

361

3600

43

168

534

4500

22

135

318

5400

79

256

737

6300

89

285

828

7200

40

168

509

8100

21

129

256

9000

89

250

753

9900

102

301

760

10800

13

160

203

Table 6. Vehicles Queue Statistics at the 1st Congestion Position




4.1. The first congestion point


By simulation, we found that vehicles will be blocked at the intersection of Lianhuachi East Rd and the waiting hall. The congestion position is shown in Fig.2, which is illustrated by circle. Simulation results are shown in Table 5 and Table 6.

As we can see from Table 5 and Table 6, vehicles’ average delay time is 6 to 27 seconds and queue average length is from 22 to 102 meters. Maximum length of vehicles queue is generally over 110 meters and the maximum can be up to 300 meters. The highest delay time may reaches 800 seconds.

The main factor is that a large number of cars turn right to drop of passenger by waiting hall which is on the Beijing West Railway Station second floor. So it causes congestion.


4.2. The second congestion point


By simulation, we found the second congestion point which lays the intersection of Lianhuachi East Road and bus hub, as shown circle in Fig. 3. Simulation results are shown in Table 6 and Table 7.

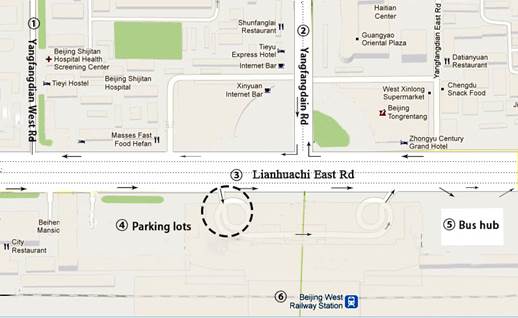

Figure 2. the 1st Congestion Point on Linhuachi East Rd.


Interval Time(sec)

Travel Time(sec)

Average Delay Time(sec)

Block Time (sec)

900

35.3

5.4

0

1800

36.6

6.9

0.1

2700

37

6.2

0.1

3600

35.7

6

0.1

4500

36.1

5.9

0.1

5400

35.8

6.4

0.1

6300

35.9

5.9

0

7200

36.9

7

0.1

8100

36.2

5.9

0.1

9000

35.7

5.6

0.1

9900

36.5

7

0.1

10800

36.3

6.3

0.1

Table 6. Itinerary and the Delay Statistics at the 2nd Congestion Position


As we can see from Table 6 and Table 7, vehicles’ average delay time is 5-7 seconds and queue average length is 4-9 meters. Vehicles’ maximum queue length may be up to 155 meters. Particularly, the bus flow and the other vehicles mix together at entrance and exit of bus hub. This situation causes blockage.


5. Conclusions


It can be seen from above analysis. Congestion in Lianhuachi East Rd from west to east is serious. There are two reasons which are some taxies and private cars turning to right to drop off passengers, buses entering and departing the Bus hub.


Interval Time(sec)

Queue  Avg. Len (meters)

Queue  Max. Len.(meters)

Delay Time (sec)

900

4

73

65

1800

7

155

87

2700

8

95

145

3600

4

141

65

4500

8

103

113

5400

4

76

64

6300

6

97

85

7200

8

139

95

8100

3

60

63

9000

7

131

90

9900

9

114

108

10800

8

147

119

Table 7. Vehicles Queue Statistics at the 2nd Congestion Position

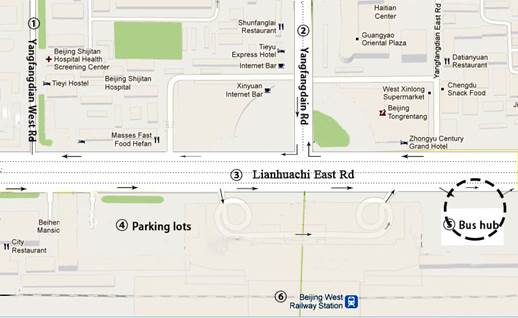

Figure 3. The 2nd Congestion Point on Lianhuachi East Rd.


In an overall view, if we want to solve the pain of the Beijing West station congestion, the general principle is making roads smoother. Then the time of vehicles blocking on the road will be reduced, and the number of cars on the road will significantly decrease. With fewer cars on the road, road is getting clearer, which is a virtuous circle. By simulation we found that if Beijing West Railway Station south square could share some cars parking, and could cut down traffic flow to 1500 vehicles/hour, this area congestion will be improved. Meanwhile, adjusting bus interval departure time, extending to 10 minutes, could improve traffic condition as well.
